This object encapsulates search operation parameters, results, and steady state. More...

#include <ZblLogSearch.h>

Inheritance diagram for Zbl::ZblLogSearch:

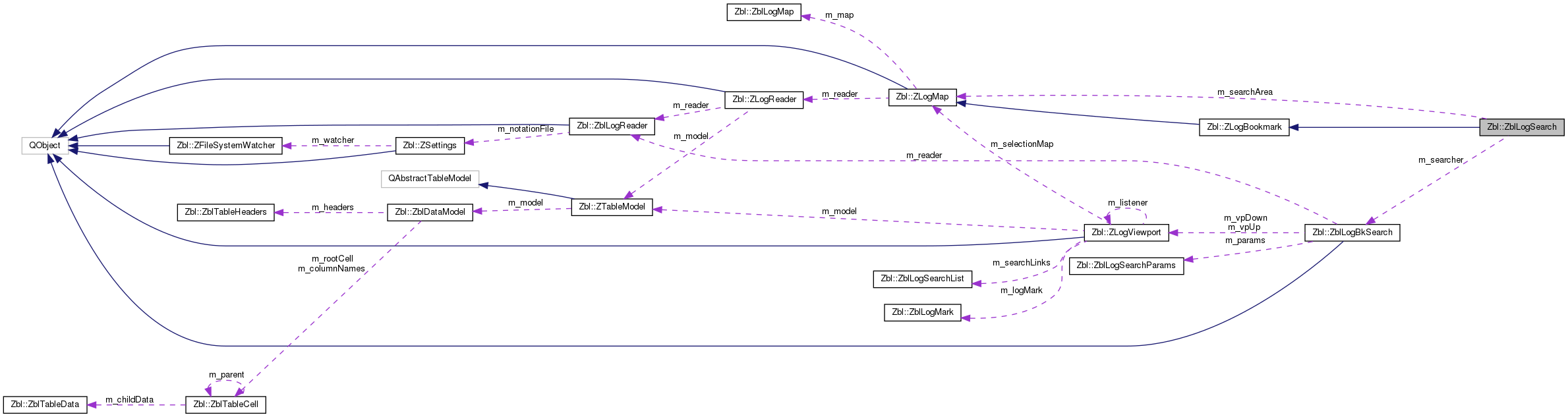

Collaboration diagram for Zbl::ZblLogSearch:

[legend]

Public Types
enum	searchState { BEGIN = 0, SCANNING, PAUSED, COMPLETE }
	States of a search. More...

enum	TextSearchDirection { SearchDirectionNull = 0, SearchDirectionForward = 1, SearchDirectionBackward = 2, SearchDirectionBoth = 3 }
	Specify search direction from initial log file position at start of search. More...

Public Types inherited from Zbl::ZLogBookmark
enum	bookmarkType { RecordNumber = 0, RecordIndex }

typedef QList< ZLogBookmark * >	zLogBookmarkList

Public Types inherited from Zbl::ZLogMap
enum	MarkType { Invalid = ZblLogMapData::Invalid, Selection = ZblLogMapData::Selection, Searchmap = ZblLogMapData::Searchmap, Bookmark = ZblLogMapData::Bookmark }
	Types of log maps: Invalid, Selection, Search, Bookmark. More...

enum	MarkRole { FirstID = ZblLogMapData::FirstID, SeekPosition = ZblLogMapData::SeekPosition, MessageText = ZblLogMapData::MessageText }
	Roles for the log map's data model. More...

typedef QList< ZLogMap * >	zLogMapList

Public Slots
void	onSearchRowMatched (qint64 recordID, qint64 seekPosition, QList< int > modelRoles)
	Called when the search engine has found a target record in the log file. More...

void	onSearchRowsMatched (ZblLogSearchList rowsFound)
	Called when the search engine has found target records in the log file. More...

void	onLinkTextComplete (QVariant linkList)
	Called by ZblLogReader when loadRecordLinkMessageText has completed. More...

QList< int >	getRolesFound () const
	Returns the set of roles for which search results were found. More...

bool	isSearch (const QString &searchPhrase, int searchType, QList< int > searchRoles) const
	Determines if this object contains results from searching for the specified search phrase and type. More...

bool	isNull ()
	Determine if this search is null. More...

void	addSearchRole (int roleNumber)
	Adds the specified role to the set of roles that will be scanned during a text search. More...

void	addSearchRoles (QList< int > rolesToSearch)
	Adds the specified roles to the set of roles that will be scanned during a text search. More...

void	setSearchRoles (QList< int > rolesToSearch)
	Replaces the current set of roles to scan during a text search with the specified roles. More...

void	clearSearchRoles ()
	Removes all roles from the set of search result roles. More...

bool	containsSearchRoles (QList< int > searchRoles) const
	Determine if the set of roles to scan when processing this searchmark contains the specified roles. More...

bool	equalsSearchRoles (QList< int > searchRoles) const
	Determine if the set of roles to scan when processing this searchmark contains exactly the specified roles. More...

QObject *	linkModel ()
	Obtain a list model containing an item for each log record represented in the ZLogSearchMark's result set. This is used to display log record links. More...

bool	search (int direction, qint64 startPos)
	Scans the log file for text matching the current search criteria. More...

void	pause ()
	Pause the background search operation. More...

void	resume ()
	Resume the background search operation. More...

void	abort ()
	Resume the background search operation. More...

Public Slots inherited from Zbl::ZLogBookmark
QString	getMarkName () const

void	setMarkName (const QString &name)

QString	getNote () const

void	setNote (const QString &note)

Public Slots inherited from Zbl::ZLogMap
void	insertMark (qint64 recordID, qint64 lastRecordID, qint64 seekPosition)
	Creates a new log mark in the database. More...

bool	hasMark (qint64 recordID)
	Determine if the log map contains a mark for the specified log record. More...

qint64	findNextMark (qint64 startID, bool forward=true) const
	Search forward or backward for the next mark from a specified starting position. More...

bool	removeMark (qint64 recordID, qint64 lastRecordID)
	Removes the specified mark from the log map. More...

void	clear ()
	Removes all marks from the log map. More...

Signals
void	invalidate ()
	Sent when a request to delete this object requires all references to be released. More...

void	notifySearchState (int newValue)

void	notifySearchForward (bool newValue)

void	notifySearchBackward (bool newValue)

void	notifyActive (bool newValue)

void	notifySaved (bool newValue)

void	notifyCompletionFileSize (qint64 newValue)

Signals inherited from Zbl::ZLogMap
void	selectionUpdated ()
	Sent whenever the ZLogMap state has been changed. More...

Public Member Functions
	ZblLogSearch (const QString &searchPhrase, int searchType, QList< int > searchRoles, ZblLogSearch::TextSearchDirections directions, qint64 startPosition, ZLogReader *reader)

QString	getPhrase () const

int	getSearchType () const

QList< int >	getSearchRoles () const
	Returns the set of roles in the log file data model that will be scanned by the text search engine when processing this searchmark. More...

searchState	getSearchState () const

bool	getActive () const

bool	getSaved () const

qint64	getCompletionFileSize () const

bool	getSearchForward () const

void	setSearchForward (bool forward)

bool	getSearchBackward () const

void	setSearchBackward (bool backward)

TextSearchDirections	getSearchDirections () const

void	setSearchDirections (ZblLogSearch::TextSearchDirections directions)

void	addRoleFound (int roleNumber)
	Adds the specified role to the set of roles where search results were found. More...

void	addRolesFound (QList< int > rolesFound)
	Adds the specified roles to the set of roles where search results were found. More...

void	clearRolesFound ()
	Removes all roles from the set of search result roles. More...

ZblLogBkSearch *	getSearcher ()
	Obtain the background searcher object associated with this search. More...

bool	validateReader (ZLogReader *reader)
	Determine if the specified background file reader is connected to this search object. More...

ZblLogSearchParams	getSearchParameters ()
	Obtain parameters for this search. More...

Public Member Functions inherited from Zbl::ZLogBookmark
	ZLogBookmark (ZLogReader *reader)

	ZLogBookmark (ZLogReader *reader, const QString &name)

Public Member Functions inherited from Zbl::ZLogMap
	ZLogMap (ZLogReader *reader)
	Constructor. More...

MarkType	getMapType ()
	returns this log map's mark type More...

Q_INVOKABLE QObject *	getReader () const
	Returns the foreground log file reader object for this log map. More...

Static Public Member Functions
static void	zInit ()
	Initializes search engine. Must be called only once before constructing the first ZblLogSearch object. More...

static QString	getSearchmarkName (QString searchPhrase, int searchType, QList< int > searchRoles)
	Creates a unique name string for a given set of search parameters. More...

static void	dismiss (QObject *search)
	QSharedPointer deleter method called when last strong reference has gone out of scope; sends detach() signal, then calls deleteLater(). More...

Static Public Member Functions inherited from Zbl::ZLogMap
static void	registerType ()
	Registers ZLogMap as a QML type. More...

Protected Member Functions
virtual int	logMapType ()
	Returns log map type. Override of ZLogBookmark::logMapType(). More...

void	populateLinkModel (ZblLogReclinkData &linkModel)
	Creates an expanded data model of this ZLogSearch object's log record links in the specified object. More...

Protected Member Functions inherited from Zbl::ZLogMap
ZLogReader *	getZReader () const
	Returns the foreground log file reader object for this search. More...

Static Protected Member Functions
static void	deleteReclinkData (ZblLogReclinkData *data)
	calls deleteLater() method of the specified ZblLogReclinkData object. More...

static QString	getSearchRolesName (QList< int > searchRoles)
	Returns a name concatenated from the specified search role list. More...

Protected Attributes
QString	m_searchPhrase
	The search phrase used to generate these search results. More...

textSearchType	m_searchType
	The type of search: case sensitive/insensitive or regular expression. More...

QSet< int >	m_rolesSearched
	The log record rolls that are searched. More...

QSet< int >	m_rolesFound
	The roles in which a search result was found. More...

QWeakPointer< ZblLogReclinkData >	m_linkModel
	A log record link data model that is shared by all ZLogReclinkModel objects created by this ZlogSearchmark object. More...

searchState	m_searchState
	Tracks the state of a search operation. More...

bool	m_active
	True if search is active, false if inactive. More...

bool	m_saved
	True is search is saved, false if unsaved. More...

TextSearchDirections	m_searchDirection
	Specifies direction of search from active viewport location. More...

qint64	m_startPosition
	File seek position of the log record from which to start the search operation. More...

qint64	m_endSize
	The file size at the successful conclusion of the search operation. More...

ZLogMap	m_searchArea
	Links in this map represent areas of the log file that have already been searched. More...

ZblLogBkSearch *	m_searcher
	A background searcher object to service foreground log file search requests. More...

Protected Attributes inherited from Zbl::ZLogBookmark
QString	m_bookmarkName
	Display name for this bookmark. More...

QString	m_note
	Annotation for this bookmark. More...

Protected Attributes inherited from Zbl::ZLogMap
ZBL_DECLARE_LOGGED_OBJECT ZblLogMap	m_map
	Create the m_tag object that presents a Javascript interface to constant integer values. More...

ZLogReader *	m_reader
	The log file reader that created this search object. More...

Static Protected Attributes
static QThread *	m_searcherThread = 0
	A single background thread services all ZblLogBkSearch objects. More...

Additional Inherited Members
Properties inherited from Zbl::ZLogBookmark
QString	name

QString	note

Properties inherited from Zbl::ZLogMap
int	mapType

Detailed Description

This object encapsulates search operation parameters, results, and steady state.

Parameters include start location, direction, data model roles, search phrase, and search type.

Results include a log map of records that satisfy the search criteria. Since ZLogSearch is a ZLogBookmark it can be named and annotated.

Results are stored in a compressed form but can be automatically expanded for display purposes.

This object is explicitly shared through the ZLogSearch wrapper object.

See also: Zbl::ZblLogSearch

Definition at line 35 of file ZblLogSearch.h.

Member Enumeration Documentation

◆ searchState

enum Zbl::ZblLogSearch::searchState

States of a search.

Enumerator
BEGIN
SCANNING
PAUSED
COMPLETE

Definition at line 46 of file ZblLogSearch.h.

◆ TextSearchDirection

enum Zbl::ZblLogSearch::TextSearchDirection

Specify search direction from initial log file position at start of search.

Enumerator
SearchDirectionNull
SearchDirectionForward
SearchDirectionBackward
SearchDirectionBoth

Definition at line 60 of file ZblLogSearch.h.

Constructor & Destructor Documentation

◆ ZblLogSearch()

Zbl::ZblLogSearch::ZblLogSearch	(	const QString &	searchPhrase,
		int	searchType,
		QList< int >	searchRoles,
		ZblLogSearch::TextSearchDirections	directions,
		qint64	startPosition,
		ZLogReader *	reader
	)

explicit

Definition at line 16 of file ZblLogSearch.cpp.

Member Function Documentation

◆ abort

void Zbl::ZblLogSearch::abort ( )

slot

Resume the background search operation.

Definition at line 101 of file ZblLogSearch.cpp.

◆ addRoleFound()

void Zbl::ZblLogSearch::addRoleFound ( int roleNumber )

Adds the specified role to the set of roles where search results were found.

This data is used to optimize scanning for text matches. Note that adding search roles to a non-empty ZLogSearch object invalidates existing search results.

Parameters

roleNumber The role number to add

Definition at line 235 of file ZblLogSearch.cpp.

◆ addRolesFound()

void Zbl::ZblLogSearch::addRolesFound ( QList< int > rolesFound )

Adds the specified roles to the set of roles where search results were found.

This data is used to optimize viewport markup operations.

Parameters

rolesFound A list of integers representing the role numbers in which search text was found.

Definition at line 240 of file ZblLogSearch.cpp.

Referenced by onSearchRowMatched().

◆ addSearchRole

void Zbl::ZblLogSearch::addSearchRole ( int roleNumber )

slot

Adds the specified role to the set of roles that will be scanned during a text search.

This data is used to optimize scanning for text matches.

Parameters

roleNumber The role number to add

Definition at line 257 of file ZblLogSearch.cpp.

◆ addSearchRoles

void Zbl::ZblLogSearch::addSearchRoles ( QList< int > rolesToSearch )

slot

Adds the specified roles to the set of roles that will be scanned during a text search.

This data is used to optimize scanning for text matches. Note that adding search roles to a non-empty ZLogSearch object invalidates existing search results.

Parameters

rolesToSearch A list of integers representing the role numbers that will be searched.

Definition at line 267 of file ZblLogSearch.cpp.

◆ clearRolesFound()

void Zbl::ZblLogSearch::clearRolesFound ( )

Removes all roles from the set of search result roles.

Definition at line 247 of file ZblLogSearch.cpp.

◆ clearSearchRoles

void Zbl::ZblLogSearch::clearSearchRoles ( )

slot

Removes all roles from the set of search result roles.

Definition at line 279 of file ZblLogSearch.cpp.

◆ containsSearchRoles

bool Zbl::ZblLogSearch::containsSearchRoles ( QList< int > searchRoles ) const

slot

Determine if the set of roles to scan when processing this searchmark contains the specified roles.

Note this does not determine if the two sets are equal.

See also: equalsSearchRoles()

Returns: true if all integers in searchRoles are contained within the set of roles to scan. False if any integer in searchRoles is not in the set of roles to scan.

Definition at line 291 of file ZblLogSearch.cpp.

◆ deleteReclinkData()

void Zbl::ZblLogSearch::deleteReclinkData ( ZblLogReclinkData * data )

staticprotected

calls deleteLater() method of the specified ZblLogReclinkData object.

Parameters

data	A ZblLogReclinkData object that has no references and will be deleted

Definition at line 391 of file ZblLogSearch.cpp.

Referenced by linkModel().

◆ dismiss()

void Zbl::ZblLogSearch::dismiss ( QObject * search )

static

QSharedPointer deleter method called when last strong reference has gone out of scope; sends detach() signal, then calls deleteLater().

Parameters

search Pointer to a ZblLogSearch object

Definition at line 69 of file ZblLogSearch.cpp.

Referenced by Zbl::ZLogReader::getZSearch().

◆ equalsSearchRoles

bool Zbl::ZblLogSearch::equalsSearchRoles ( QList< int > searchRoles ) const

slot

Determine if the set of roles to scan when processing this searchmark contains exactly the specified roles.

Returns: true if the set of integers in searchRoles is exactly the same as the set of roles to scan, false otherwise.

Definition at line 299 of file ZblLogSearch.cpp.

◆ getActive()

bool Zbl::ZblLogSearch::getActive ( ) const

Definition at line 215 of file ZblLogSearch.cpp.

◆ getCompletionFileSize()

qint64 Zbl::ZblLogSearch::getCompletionFileSize ( ) const

Definition at line 225 of file ZblLogSearch.cpp.

◆ getPhrase()

QString Zbl::ZblLogSearch::getPhrase ( ) const

Definition at line 155 of file ZblLogSearch.cpp.

Referenced by Zbl::ZblLogSearchParams::ZblLogSearchParams().

◆ getRolesFound

QList< int > Zbl::ZblLogSearch::getRolesFound ( ) const

slot

Returns the set of roles for which search results were found.

Returns: An array containing the role numbers

Definition at line 252 of file ZblLogSearch.cpp.

◆ getSaved()

bool Zbl::ZblLogSearch::getSaved ( ) const

Definition at line 220 of file ZblLogSearch.cpp.

◆ getSearchBackward()

bool Zbl::ZblLogSearch::getSearchBackward ( ) const

Definition at line 186 of file ZblLogSearch.cpp.

◆ getSearchDirections()

ZblLogSearch::TextSearchDirections Zbl::ZblLogSearch::getSearchDirections ( ) const

Definition at line 202 of file ZblLogSearch.cpp.

Referenced by Zbl::ZblLogSearchParams::ZblLogSearchParams().

◆ getSearcher()

ZblLogBkSearch * Zbl::ZblLogSearch::getSearcher ( )

Obtain the background searcher object associated with this search.

Returns: A pointer to a ZblLogBkSearch object.

Definition at line 84 of file ZblLogSearch.cpp.

◆ getSearchForward()

bool Zbl::ZblLogSearch::getSearchForward ( ) const

Definition at line 171 of file ZblLogSearch.cpp.

◆ getSearchmarkName()

QString Zbl::ZblLogSearch::getSearchmarkName	(	QString	searchPhrase,
		int	searchType,
		QList< int >	searchRoles
	)

static

Creates a unique name string for a given set of search parameters.

Parameters

searchPhrase
searchType
searchRoles

Returns

Definition at line 107 of file ZblLogSearch.cpp.

Referenced by Zbl::ZLogReader::getZSearch(), Zbl::ZLogReader::hasSearch(), and ZblLogSearch().

◆ getSearchParameters()

ZblLogSearchParams Zbl::ZblLogSearch::getSearchParameters ( )

Obtain parameters for this search.

Returns: A ZblLogSearchParams object containing the current search parameters for this viewport

Definition at line 504 of file ZblLogSearch.cpp.

Referenced by search(), and ZblLogSearch().

◆ getSearchRoles()

QList< int > Zbl::ZblLogSearch::getSearchRoles ( ) const

Returns the set of roles in the log file data model that will be scanned by the text search engine when processing this searchmark.

Only roles in this set will be scanned. Roles not in the set will be ignored.

Returns: An array containing the role numbers

Definition at line 286 of file ZblLogSearch.cpp.

Referenced by Zbl::ZblLogSearchParams::ZblLogSearchParams().

◆ getSearchRolesName()

QString Zbl::ZblLogSearch::getSearchRolesName ( QList< int > searchRoles )

staticprotected

Returns a name concatenated from the specified search role list.

Parameters

searchRoles a list of search roles for the name

Returns: A string containing the concatenated name.

Definition at line 114 of file ZblLogSearch.cpp.

Referenced by getSearchmarkName().

◆ getSearchState()

ZblLogSearch::searchState Zbl::ZblLogSearch::getSearchState ( ) const

Definition at line 165 of file ZblLogSearch.cpp.

◆ getSearchType()

int Zbl::ZblLogSearch::getSearchType ( ) const

Definition at line 160 of file ZblLogSearch.cpp.

Referenced by Zbl::ZblLogSearchParams::ZblLogSearchParams().

◆ invalidate

void Zbl::ZblLogSearch::invalidate ( )

signal

Sent when a request to delete this object requires all references to be released.

All strong references to this object (wrapper objects, etc) should be released in response to this signal.

WARNING: Failure to respond to this signal may result in duplicate search objects which will waste resources and potentially cause erratic UI behavior.

Referenced by Zbl::ZLogReader::getSearch().

◆ isNull

bool Zbl::ZblLogSearch::isNull ( )

slot

Determine if this search is null.

A null search by definition matches zero log records.

Returns: true if this search object is a null search, false otherwise.

Definition at line 313 of file ZblLogSearch.cpp.

◆ isSearch

bool Zbl::ZblLogSearch::isSearch	(	const QString &	searchPhrase,
		int	searchType,
		QList< int >	searchRoles
	)		const

slot

Determines if this object contains results from searching for the specified search phrase and type.

Parameters

searchPhrase
searchType
searchRoles

Returns

Definition at line 306 of file ZblLogSearch.cpp.

◆ linkModel

QObject * Zbl::ZblLogSearch::linkModel ( )

slot

Obtain a list model containing an item for each log record represented in the ZLogSearchMark's result set. This is used to display log record links.

The returned ZLogReclinkModel object remains synchronized to the ZLogSearch object that created it. Links may continue to be added to the model as the search operation progresses.

Returns: A ZLogReclinkModel object containing the search result set.

See also: ZLogReclinkModel, ZLogBookmark, ZLogMap, ZblLogMap

Definition at line 360 of file ZblLogSearch.cpp.

Referenced by onLinkTextComplete().

◆ logMapType()

int Zbl::ZblLogSearch::logMapType ( )

protectedvirtual

Returns log map type. Override of ZLogBookmark::logMapType().

Returns: the map type ZLogMap::Search

Reimplemented from Zbl::ZLogBookmark.

Definition at line 230 of file ZblLogSearch.cpp.

◆ notifyActive

void Zbl::ZblLogSearch::notifyActive ( bool newValue )

signal

◆ notifyCompletionFileSize

void Zbl::ZblLogSearch::notifyCompletionFileSize ( qint64 newValue )

signal

◆ notifySaved

void Zbl::ZblLogSearch::notifySaved ( bool newValue )

signal

◆ notifySearchBackward

void Zbl::ZblLogSearch::notifySearchBackward ( bool newValue )

signal

◆ notifySearchForward

void Zbl::ZblLogSearch::notifySearchForward ( bool newValue )

signal

◆ notifySearchState

void Zbl::ZblLogSearch::notifySearchState ( int newValue )

signal

◆ onLinkTextComplete

void Zbl::ZblLogSearch::onLinkTextComplete ( QVariant linkList )

slot

Called by ZblLogReader when loadRecordLinkMessageText has completed.

Parameters

linkList An encapsulated ZblLogLinkList object containing message text.

Definition at line 436 of file ZblLogSearch.cpp.

◆ onSearchRowMatched

void Zbl::ZblLogSearch::onSearchRowMatched	(	qint64	recordID,
		qint64	seekPosition,
		QList< int >	modelRoles
	)

slot

Called when the search engine has found a target record in the log file.

Parameters

recordID	The record ID number of the log record where search results were found.
seekPosition	The file seek position of the log record where search results were found.
modelRoles	A list of role numbers of this log record where search results were found.

Definition at line 322 of file ZblLogSearch.cpp.

◆ onSearchRowsMatched

void Zbl::ZblLogSearch::onSearchRowsMatched ( ZblLogSearchList rowsFound )

slot

Called when the search engine has found target records in the log file.

Parameters

rowsFound A list of rows that matched the search parameters.

Definition at line 341 of file ZblLogSearch.cpp.

Referenced by ZblLogSearch().

◆ pause

void Zbl::ZblLogSearch::pause ( )

slot

Pause the background search operation.

Definition at line 91 of file ZblLogSearch.cpp.

◆ populateLinkModel()

void Zbl::ZblLogSearch::populateLinkModel ( ZblLogReclinkData & linkModel )

protected

Creates an expanded data model of this ZLogSearch object's log record links in the specified object.

Previous contents of linkModel will be lost.

Parameters

linkModel A ZblLogReclinkData object to receive log record links.

Definition at line 398 of file ZblLogSearch.cpp.

Referenced by linkModel().

◆ resume

void Zbl::ZblLogSearch::resume ( )

slot

Resume the background search operation.

Definition at line 96 of file ZblLogSearch.cpp.

◆ search

bool Zbl::ZblLogSearch::search	(	int	direction,
		qint64	startPos
	)

slot

Scans the log file for text matching the current search criteria.

Search operation is performed in a background thread. The findComplete signal is emitted when the operation has finished.

Parameters

forward	Direction of search: true = forward, false = backward
startRow	model row number of the first log record to search

Returns: true if background search operation started, false if search operation failed to start

See also: setSearch()

Definition at line 464 of file ZblLogSearch.cpp.

Referenced by dismiss().

◆ setSearchBackward()

void Zbl::ZblLogSearch::setSearchBackward ( bool backward )

Definition at line 191 of file ZblLogSearch.cpp.

◆ setSearchDirections()

void Zbl::ZblLogSearch::setSearchDirections ( ZblLogSearch::TextSearchDirections directions )

Definition at line 207 of file ZblLogSearch.cpp.

◆ setSearchForward()

void Zbl::ZblLogSearch::setSearchForward ( bool forward )

Definition at line 176 of file ZblLogSearch.cpp.

◆ setSearchRoles

void Zbl::ZblLogSearch::setSearchRoles ( QList< int > rolesToSearch )

slot

Replaces the current set of roles to scan during a text search with the specified roles.

Only log data model roles specified in rolesToSearch will be scanned. All others will be ignored.

This data is used to optimize scanning for text matches. Note that setting search roles invalidates existing search results.

Parameters

rolesToSearch A list of integers representing the role numbers that will be searched.

◆ validateReader()

bool Zbl::ZblLogSearch::validateReader ( ZLogReader * reader )

Determine if the specified background file reader is connected to this search object.

Parameters

reader The background reader to check.

Returns: true if the specified reader is connected to this object, flase if not

Definition at line 63 of file ZblLogSearch.cpp.

◆ zInit()

void Zbl::ZblLogSearch::zInit ( )

static

Initializes search engine. Must be called only once before constructing the first ZblLogSearch object.

Definition at line 57 of file ZblLogSearch.cpp.

Referenced by Zbl::ZLogReader::registerType().

Member Data Documentation

◆ m_active

bool Zbl::ZblLogSearch::m_active

protected

True if search is active, false if inactive.

A search is active when search opeartions are enabled and results for the search are currently in memory.

Search operations are disabled for inactive searches and search results are not available in memory.

Definition at line 622 of file ZblLogSearch.h.

Referenced by getActive(), and ZblLogSearch().

◆ m_endSize

qint64 Zbl::ZblLogSearch::m_endSize

protected

The file size at the successful conclusion of the search operation.

Minus one indicates no successful conclusion state has yet been achieved.

Definition at line 652 of file ZblLogSearch.h.

Referenced by getCompletionFileSize().

◆ m_linkModel

QWeakPointer<ZblLogReclinkData> Zbl::ZblLogSearch::m_linkModel

protected

A log record link data model that is shared by all ZLogReclinkModel objects created by this ZlogSearchmark object.

The ZblLogReclinkData object is synchronized with the ZLogSearch object that created it such that changes to the search result set made to the ZLogSearch object will be propagated to the ZblLogReclinkData object.

The shared ZblLogReclinkData object will be destroyed when all referencing ZLogReclinkModel objects are deleted since ZLogReclinkModel holds a QSharedPointer (strong reference) to ZblLogReclinkData.

QWeakPointer won't prevent the ZblLogReclinkData object from being destroyed. Thus must promomte it to a strong pointer and check for object existence before using it.

Definition at line 605 of file ZblLogSearch.h.

Referenced by linkModel(), and onLinkTextComplete().

◆ m_rolesFound

QSet<int> Zbl::ZblLogSearch::m_rolesFound

protected

The roles in which a search result was found.

This data is used to optimize performance of highlighting search text in the log record data model by using trivial rejection of data roles that don't contain search results.

Definition at line 584 of file ZblLogSearch.h.

Referenced by addRoleFound(), addRolesFound(), clearRolesFound(), and getRolesFound().

◆ m_rolesSearched

QSet<int> Zbl::ZblLogSearch::m_rolesSearched

protected

The log record rolls that are searched.

Only roles in this set will be examined when scanning log file to create this searchmark.

Definition at line 573 of file ZblLogSearch.h.

Referenced by addSearchRole(), addSearchRoles(), clearSearchRoles(), containsSearchRoles(), equalsSearchRoles(), getSearchParameters(), getSearchRoles(), isNull(), isSearch(), and ZblLogSearch().

◆ m_saved

bool Zbl::ZblLogSearch::m_saved

protected

True is search is saved, false if unsaved.

A search is saved when it has previously been written to persistent storage.

Definition at line 631 of file ZblLogSearch.h.

Referenced by getSaved(), and ZblLogSearch().

◆ m_searchArea

ZLogMap Zbl::ZblLogSearch::m_searchArea

protected

Links in this map represent areas of the log file that have already been searched.

Definition at line 658 of file ZblLogSearch.h.

◆ m_searchDirection

TextSearchDirections Zbl::ZblLogSearch::m_searchDirection

protected

Specifies direction of search from active viewport location.

Definition at line 637 of file ZblLogSearch.h.

Referenced by getSearchBackward(), getSearchDirections(), getSearchForward(), getSearchParameters(), setSearchBackward(), setSearchDirections(), setSearchForward(), and ZblLogSearch().

◆ m_searcher

ZblLogBkSearch* Zbl::ZblLogSearch::m_searcher

protected

A background searcher object to service foreground log file search requests.

Definition at line 665 of file ZblLogSearch.h.

Referenced by getSearcher(), search(), and ZblLogSearch().

◆ m_searcherThread

QThread * Zbl::ZblLogSearch::m_searcherThread = 0

staticprotected

A single background thread services all ZblLogBkSearch objects.

Definition at line 670 of file ZblLogSearch.h.

Referenced by ZblLogSearch(), and zInit().

◆ m_searchPhrase

QString Zbl::ZblLogSearch::m_searchPhrase

protected

The search phrase used to generate these search results.

Definition at line 558 of file ZblLogSearch.h.

Referenced by getPhrase(), getSearchParameters(), getSearchRolesName(), isNull(), and isSearch().

◆ m_searchState

searchState Zbl::ZblLogSearch::m_searchState

protected

Tracks the state of a search operation.

Definition at line 612 of file ZblLogSearch.h.

Referenced by getSearchState(), and ZblLogSearch().

◆ m_searchType

textSearchType Zbl::ZblLogSearch::m_searchType

protected

The type of search: case sensitive/insensitive or regular expression.

Definition at line 564 of file ZblLogSearch.h.

Referenced by getSearchParameters(), getSearchType(), isSearch(), and ZblLogSearch().

◆ m_startPosition

qint64 Zbl::ZblLogSearch::m_startPosition

protected

File seek position of the log record from which to start the search operation.

Definition at line 644 of file ZblLogSearch.h.

The documentation for this class was generated from the following files:

zblcore/ZblLogSearch.h
zblcore/ZblLogSearch.cpp

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ searchState

◆ TextSearchDirection

Constructor & Destructor Documentation

◆ ZblLogSearch()

Member Function Documentation

◆ abort

◆ addRoleFound()

◆ addRolesFound()

◆ addSearchRole

◆ addSearchRoles

◆ clearRolesFound()

◆ clearSearchRoles

◆ containsSearchRoles

◆ deleteReclinkData()

◆ dismiss()

◆ equalsSearchRoles

◆ getActive()

◆ getCompletionFileSize()

◆ getPhrase()

◆ getRolesFound

◆ getSaved()

◆ getSearchBackward()

◆ getSearchDirections()

◆ getSearcher()

◆ getSearchForward()

◆ getSearchmarkName()

◆ getSearchParameters()

◆ getSearchRoles()

◆ getSearchRolesName()

◆ getSearchState()

◆ getSearchType()

◆ invalidate

◆ isNull

◆ isSearch

◆ linkModel

◆ logMapType()

◆ notifyActive

◆ notifyCompletionFileSize

◆ notifySaved

◆ notifySearchBackward

◆ notifySearchForward

◆ notifySearchState

◆ onLinkTextComplete

◆ onSearchRowMatched

◆ onSearchRowsMatched

◆ pause

◆ populateLinkModel()

◆ resume

◆ search

◆ setSearchBackward()

◆ setSearchDirections()

◆ setSearchForward()

◆ setSearchRoles

◆ validateReader()

◆ zInit()

Member Data Documentation

◆ m_active

◆ m_endSize

◆ m_linkModel

◆ m_rolesFound

◆ m_rolesSearched

◆ m_saved

◆ m_searchArea

◆ m_searchDirection

◆ m_searcher

◆ m_searcherThread

◆ m_searchPhrase

◆ m_searchState
